KAP-HN – The incredibly hard-wearing breathing air compressors for continuous operation in civil and military shipping

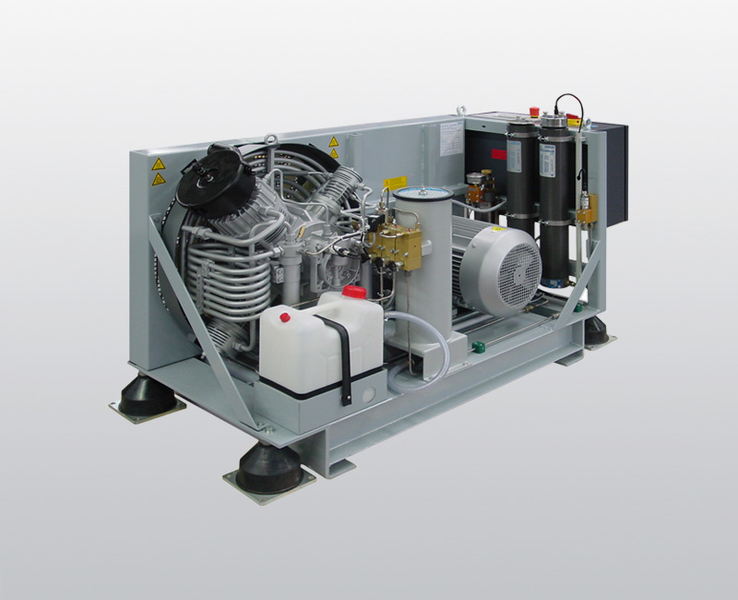

BAUER KAP-HN breathing air compressor from left
BAUER KAP-HN breathing air compressor from left

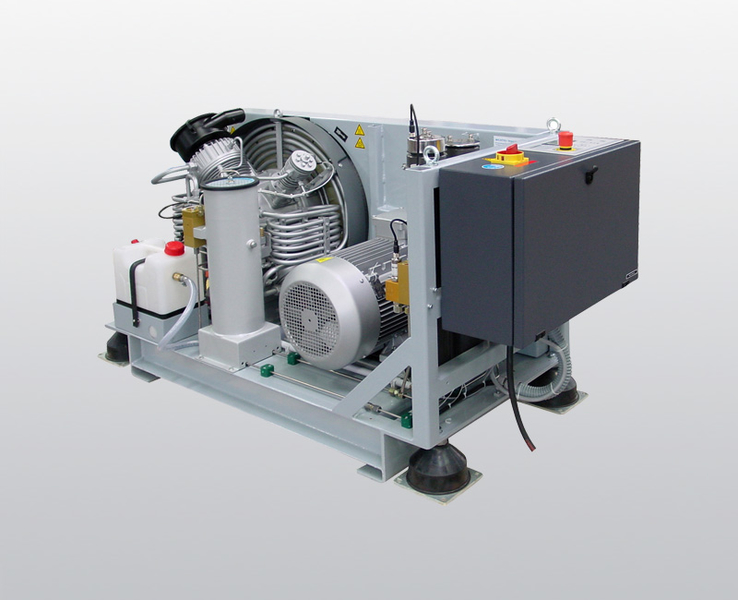

BAUER KAP-HN high-pressure compressor from right
BAUER KAP-HN high-pressure compressor from right

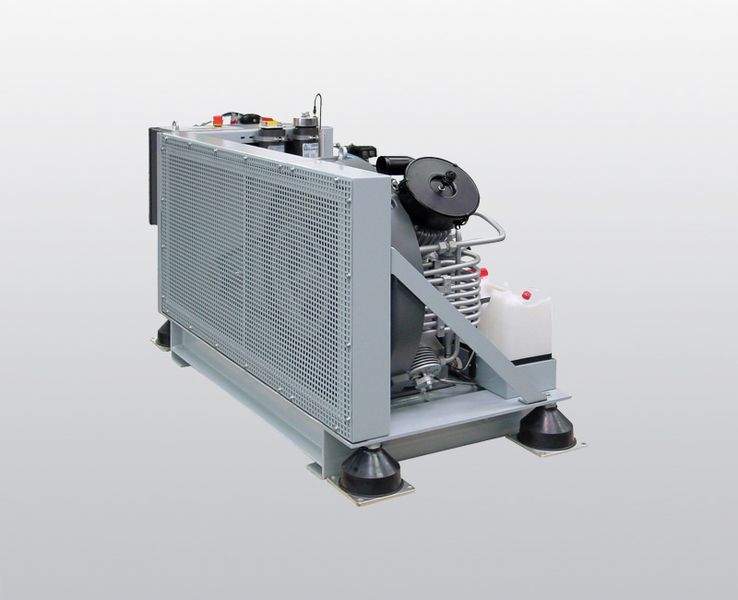

BAUER KAP-HN high-pressure compressor, rear view
BAUER KAP-HN high-pressure compressor, rear view

Perfect for demanding requirements at sea: Intercoolers and aftercoolers made from rust-free stainless steel. For high corrosion resistance

Ideal for use in professional applications: High air delivery rates in continuous operation thanks to industrial roller bearings

Fully automatic compressor control: B-CONTROL MICRO

Little space required: Thanks to compact horizontal design

A low centre of gravity and clever design with special shock absorbers and robust shock and damping elements make the KAP-HN series by BAUER KOMPRESSOREN ideal for continuous operation at sea under the harshest of conditions.

Thanks to their horizontal design, they take up little space when installed and are even capable of operation in heavy seas and on steep slopes.

Extremely hard-wearing compressor blocks and piston rings made from an innovative high-tech plastic combined with plasma-nitrided and plateau-honed cylinders virtually eliminate wear. The intercoolers and aftercoolers are made from stainless steel for high corrosion resistance.

Can be expanded to rise to any challenge: the extensive range of BAUER accessories provides the basis for flexible adaptation to meet all manner of requirements.

All the information you need at your fingertips!

IK 150 4-stage compressor block
IK 150 4-stage compressor block

IK 15.1/150/180 compressor blocks
The compressor stages, which are located on sides of the compressor blocks, are the key to optimum smooth running and high efficiency. The free-standing cylinders are easy to access and maintain. Read more

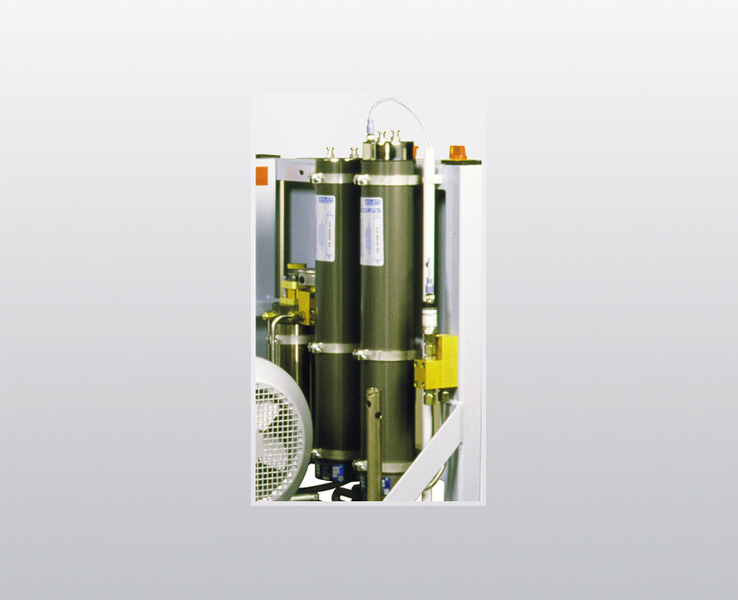

Filter system P 41 DUO
Filter system P 41 DUO

Filter system P 41 DUO
With two filter housings, additional oil and water separator and pressure retention check valve, this system can be relied upon to keep your breathing air clean.
A type-tested and sealed final pressure safety valve optimises operational safety. 2200 standard cubic metres of air can be treated.

Display B-CONTROL MICRO
Display B-CONTROL MICRO

B-CONTROL MICRO compressor control
The B-CONTROL MICRO is a modern, easy-to-use compressor control with colour display for the control and reliable monitoring of all basic functions. Read more

B-SECURUS filter monitoring
B-SECURUS filter monitoring

B-SECURUS filter monitoring
The B-SECURUS system monitors the saturation of the filter cartridge(s) by measuring the moisture in the molecular sieve. Read more

Additional intermediate separator downstream of the first stage
Additional intermediate separator downstream of the first stage

Additional intermediate separator after the first stage
In the case of operation in locations where air humidity is high (tropical regions, for example), we recommend installing a separator downstream of the first compressor stage. This can extend the service life of the unit and reduce maintenance costs.

Intermediate pressure gauge kit
Intermediate pressure gauge kit

Intermediate pressure gauge kit
The intermediate pressure gauges show the operating pressure of the individual compressor stages. This information about the pressure is used to check the corresponding stage valves (inlet and outlet) for leaks so that potential faults can be detected quickly. The intermediate pressure gauges are installed inside the compressor housing.

Display B-CONTROL III
Display B-CONTROL III

B-CONTROL III
B-CONTROL III is BAUER's premium control system for demanding applications. B-CONTROL III can be flexibly adapted to your individual requirements and, if necessary, expanded to control complete system processes. Read more

Special paint finish
Special paint finish

Paint finish/Special paint finish
All frame parts of BAUER compressors are finished with a sophisticated powder coating. Read more

Other voltages/frequencies
Other voltages/frequencies

Other voltages/frequencies
All electric motors are available with other voltages and frequencies on request.

60 l condensate collection system
60 l condensate collection system

60 l condensate collection system
This convenient system provides a central collection point for the condensate (oil and water mixture) produced during the compression process inside the compressor. The condensate tank features an integrated float switch which can be relied upon to monitor the level of condensate in the tank and provides protection against overfilling. A combined silencer and filter unit prevents pollution caused by noise or odour.

Scope of delivery, basic version
Scope of delivery, basic version

Scope of delivery, basic version
Complete compressor unit ready for operation. Read more

KAP-HN breathing air compressor, up to 330 bar, 370 – 660 l/min, high-pressure compressor for compressing air and breathing air
Type
designation		 Charging rate ¹ Max. operating
pressure		 Speed
approx.		 Motor
output		 Filter
system		 Net
weight		 Dimensions
L × W × H
  l/min cfm bar rpm kW   kg lbs cm
KAP 15.1-7.5-HN 370 13 330 1050 7.5 P 41 DUO 480 1050 165 × 72.5 × 92
KAP 150-11-HN 540 19 330 1230 11 P 41 DUO 505 1110 165 × 72.5 × 92
KAP 180-15-HN 660 23 330 1320 15 P 41 DUO 520 1150 165 × 72.5 × 92

¹ Measured with cylinder filling (10 l) from 0 to 200 bar, ±5%
