MARINER 320 Nitrox – One of the most powerful mobile compressors for the compression of nitrox and breathing air in the world

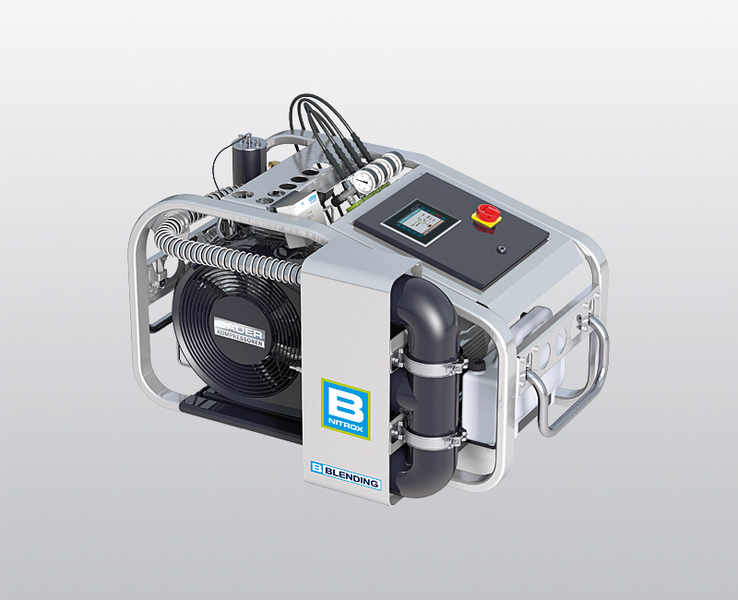

BAUER Nitrox compressor MARINER 320-OX
BAUER Nitrox compressor MARINER 320-OX

Fitted with B-CONTROL II compressor control

Temperature monitoring of all stages and in the final separator

Maximum FAD combined with minimum space requirements put the MARINER 320 firmly at the top of the PROFI-LINE II range.

Exuding professional quality and tailor-made for any application at 320 l/min, the MARINER 320 is one of the most powerful mobile compressors in the world.

The incredibly durable block and corrosion-resistant components make this compressor suitable for use even under the toughest climate conditions.

Thanks to the extensive range of BAUER accessories, the MARINER 320 can be customised to meet all manner of different requirements and intended uses.

All the information you need at your fingertips!

IK 12.14 compressor block
IK 12.14 compressor block

IK 12.14 compressor block
The BAUER IK 12.14 compressor block is used for breathing air and industrial units. Its durability, reliability and high-quality design provide the basis for seamless and fault-free continuous operation. Read more

P 41 filter system
P 41 filter system

P 41 Purification system
When used in conjunction with original BAUER filter cartridges, the P 41 filter system with additional oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021:2014¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 1550 m³ of air can be treated.

¹ If the units are maintained and installed correctly as described in the user manual and subject to the BAUER AERO-GUARD being used if CO2 concentration in the intake air exceeds prescribed standard values.

Display B-CONTROL II
Display B-CONTROL II

B-CONTROL II
The BAUER B-CONTROL II is the advanced version of the basic compressor control B-CONTROL MICRO. Read more

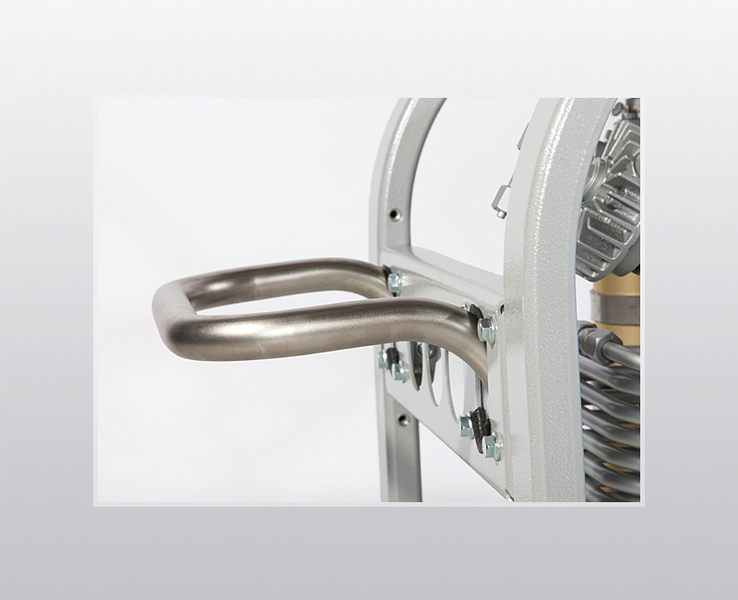

Crash frame incl. handles
Crash frame incl. handles

Crash frame incl. handles
The corrosion-resistant crash frame provides additional protection for the unit and can accommodate additional accessories such as a compressor control or a larger filter system. The handles make moving the unit easy and convenient.

Filling device complete with final pressure gauge
Filling device complete with final pressure gauge

Filling device
The filling device comprises a flexible "UNIMAM" high-pressure filling hose and filling valve complete with final pressure gauge. The final pressure gauge makes it easy to read off the filling pressure. It is protected against damage by a durable rubber jacket.

High-quality UNIMAM high-pressure filling hose 200 or 300 bar
High-quality UNIMAM high-pressure filling hose 200 or 300 bar

Filling hose
High-quality UNIMAM high-pressure filling hoses made from food-safe and long-life hose material make for flexible and safe handling. Swivel hose connections enable the filling valve to be connected to the breathing air cylinder quickly, easily and safely.

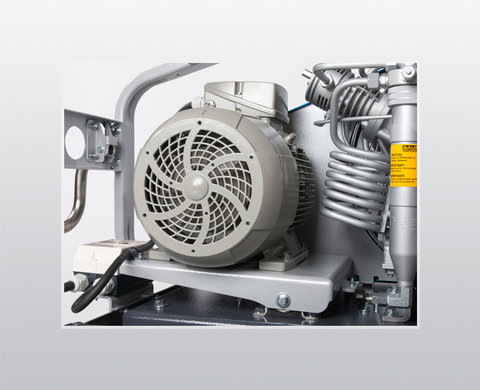

Motor rocker
Motor rocker

Motor rocker
The integration of a motor rocker means that the tension of the V-belt no longer has to be adjusted.

SECURUS is a direct asset to your safety!
SECURUS is a direct asset to your safety!

SECURUS is a direct asset to your safety!
SECURUS is an electronic filter cartridge saturation control which continuously monitors the ability of the final filter cartridge to dry breathing air in accordance with the standard EN 12021:2014. Read more

Additional intermediate separator downstream of the first stage
Additional intermediate separator downstream of the first stage

Additional intermediate separator after the first stage
In the case of operation in locations where air humidity is high (tropical regions, for example), we recommend installing a separator downstream of the first compressor stage. This can extend the service life of the unit and reduce maintenance costs.

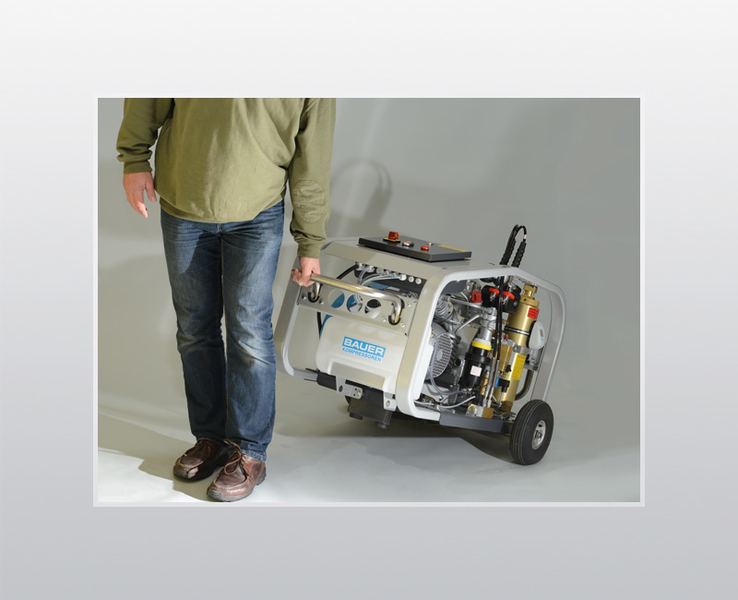

Trolley
Trolley

Trolley
The trolley provides an easy and convenient mode of transport for mobile compressor units. Fitted with pneumatic tyres, the trolley maximises mobility.

B-KOOL refrigeration dryer
B-KOOL refrigeration dryer

B-KOOL refrigeration dryer
In environments in which ambient temperatures are high in particular, the B-KOOL refrigeration dryer extends filter capacity almost beyond belief. Operators benefit from much lower filter cartridge usage and storage costs in addition to longer interruption-free operation. Read more

Other voltages/frequencies
Other voltages/frequencies

Other voltages/frequencies
All electric motors are available with other voltages and frequencies on request.

Special paint finish
Special paint finish

Paint finish/Special paint finish
All frame parts of BAUER compressors are finished with a sophisticated powder coating. Read more

Scope of delivery, basic version
Scope of delivery, basic version

Scope of delivery, basic version
Complete compressor unit ready for operation. Read more

MARINER 320 Nitrox high-pressure compressor up to 330 bar, 320 l/min
Type
designation
Charging rate ¹ Drive Filter
system
Net
weight
Dimensions
L × W × H
  l/min Motor kW   Approx. kg cm
MARINER 320-E-OX 320 Three-phase motor, 400 V, 50 Hz ² 7.5 P 41 180 130 × 65 × 70

¹ Measured with cylinder filling from 0 to 200 bar, ±5%
² Option of different voltage/frequency available
