The GIB series: Water-cooled high-pressure booster compressors for the compression of air, nitrogen, helium, heliox and argon – with high delivery rates at final pressures up to 520 bar

BAUER GIB 52 water-cooled, high-pressure booster
BAUER GIB 52 water-cooled, high-pressure booster
BAUER GIB 23 water-cooled, high-pressure booster
BAUER GIB 23 water-cooled, high-pressure booster
BAUER GIB 26 water-cooled, high-pressure booster
BAUER GIB 26 water-cooled, high-pressure booster

Optimum free air delivery rates for your application: For the compression of air, nitrogen, helium, heliox and argon

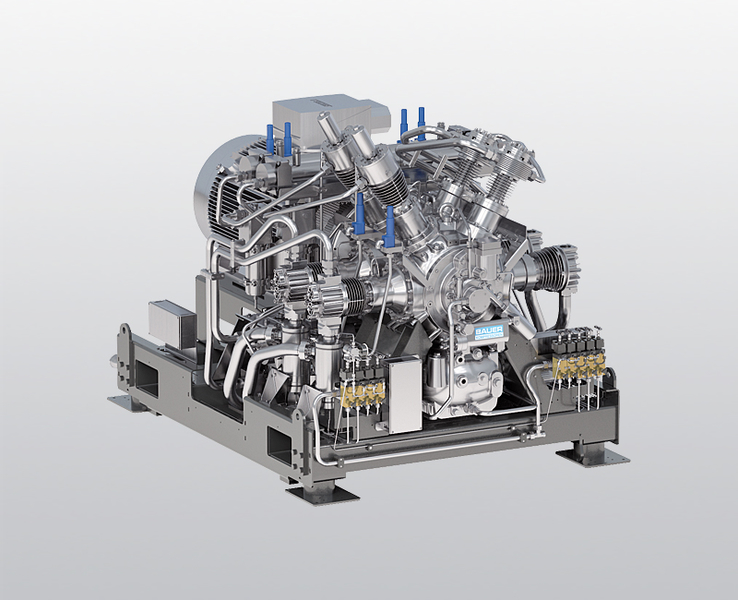

Compressor blocks in the BK 23 – BK 52 series: For uniform absorption of the internal gas forces

Robust unit construction: Thanks to fully proven BAUER system components

Standalone installation even under the most difficult ambient conditions: With effective water cooling of the compressor block and dedicated heat dissipation

As cost-effective and durable system solutions for heavy-duty applications, the water-cooled, high-pressure boosters in the GIB series from BAUER KOMPRESSOREN support a wide and varied range of options for post-compression.

These multi-stage boosters combine high delivery rates at final pressures up to max. 520 bar with low power consumption.

Ideally matches pressure ratios of the individual compressor stages significantly reduce process costs for the post-compression of air, nitrogen, helium, argon and other noble gases.

All the information you need at your fingertips!

Display B-CONTROL MICRO
Display B-CONTROL MICRO

B-CONTROL MICRO compressor control
The B-CONTROL MICRO is a modern, easy-to-use compressor control with colour display for the control and reliable monitoring of all basic functions. Read more

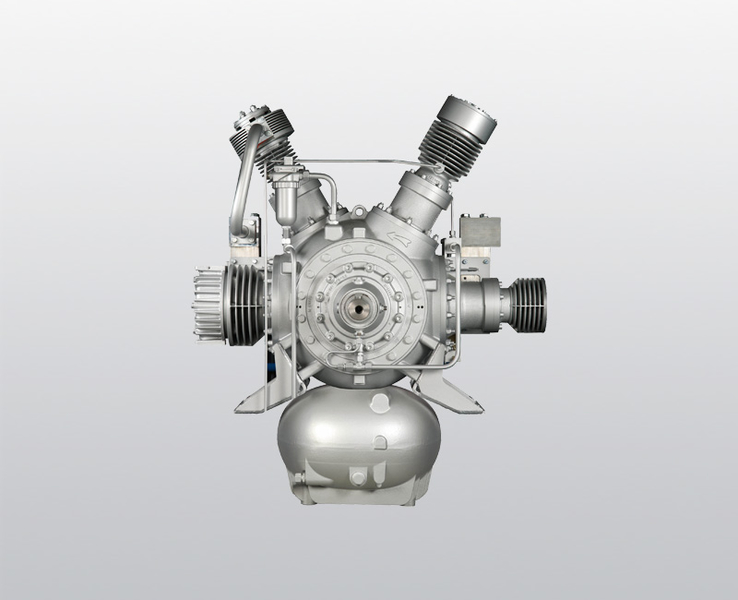

BK 26 compressor block
BK 26 compressor block

Compressor block
For compressor units with intake pressure, the BK 23 to BK 52 block series feature a specially designed crankcase for uniform absorption of the internal gas forces. Read more

Water cooling (heat exchanger)
Water cooling (heat exchanger)

Water cooling
By using targeted water cooling between the interstage and afterstage coolers and valve heads, the system enables the majority of the heat produced to be absorbed by the cooling water. This maintenance-friendly cooling concept is suitable in particular for difficult spatial and ambient conditions where it would not be possible to use an air-cooled compressor.

GIB 52 – horizontal configuration
GIB 52 – horizontal configuration

Configuration
The water-cooled series is characterised by its crankcase, which is pressure-resistant up to 16 bar. Read more

Display B-CONTROL II
Display B-CONTROL II

B-CONTROL II
The BAUER B-CONTROL II is the advanced version of the B-CONTROL MICRO basic compressor control. Read More

Special colours
Special colours

Colour range
Customer-specific paint finishes in other colours or special composition paints (conforming to corrosivity category C5M, for example) are available alongside the standard BAUER paint finishes.

Explosion protection design
Explosion protection design

Explosion protection conforming to ATEX guidelines
Compressor units by BAUER KOMPRESSOREN can be supplied with explosion protection and conforming to ATEX directives.

Start-up configuration
Start-up configuration

Start-up configuration
At and above motor power ratings of 75 kW and in conjunction with the B-CONTROL, a soft starter to protect the unit during starting and effectively reduce starting current is used as standard. The technical alternative is soft staring with a frequency inverter. Read more

Monitoring of intermediate pressures and temperatures
Monitoring of intermediate pressures and temperatures

Monitoring of pressure and temperature
This add-on module for the B-CONTROL control monitors the pressures and temperatures of all compressor stages. Read more

Intake pressure reduction
Intake pressure reduction

Intake pressure reduction
Intake pressure reduction ensures that the compressor takes in the gas at the appropriate pressure. Integrated safety valves and pressure monitoring provide an effective means of ensuring that the permissible intake pressure is not exceeded or undershot.

Intake buffer vessel
Intake buffer vessel

Intake buffer vessel
To effectively prevent pulsations in the intake area, an intake buffer vessel is installed between the compressor and the upstream gas supply networks and/or control equipment. Read more

Condensate vessel, 60 litres
Condensate vessel, 60 litres

60-litre condensate vessel
The generous 60 l condensate collection system provides a central collection point for the condensate produced during the compression process inside the compressor. Read more

Condensate vessel (noble gases) with intake buffer vessel on base frame
Condensate vessel (noble gases) with intake buffer vessel on base frame

Condensate vessel (noble gases)
During the compression of helium and argon, the gas released with the condensate is fed into the condensate vessel. Read more

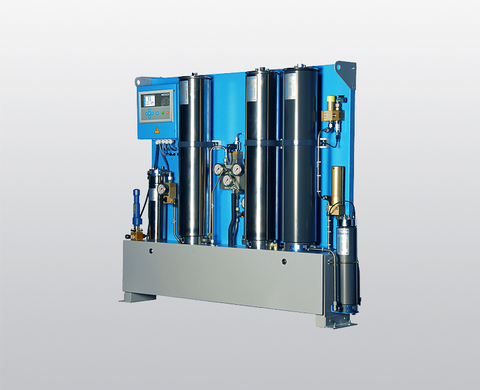

SECCANT IV-A
SECCANT IV-A

Treatment systems
BAUER treatment systems for highly compressed air and gases reduce content such as moisture, oil and particles to a permissible level. Read more

B 2000 storage system
B 2000 storage system

Storage systems
Modular high-pressure storage systems by BAUER KOMPRESSOREN are the ideal way to expand a compressor system. Read more

Plate heat exchanger set
Plate heat exchanger set

Plate heat exchanger set

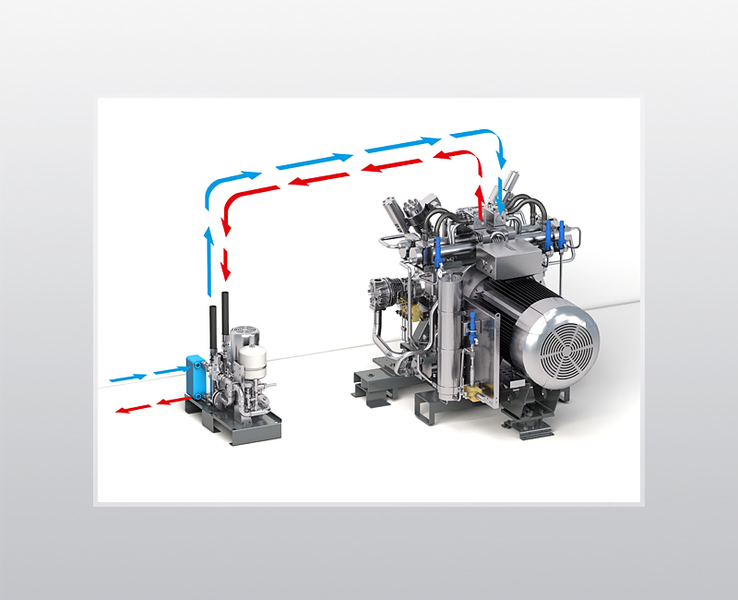

The plate heat exchanger set can be used to build a dedicated enclosed compressor cooling water circuit. In open cooling systems with stream water or sea water or open cooling towers, this is essential in order to operate the compressor with cooling water of suitable quality.

Heat exchanger set
Heat exchanger set

Heat exchanger set

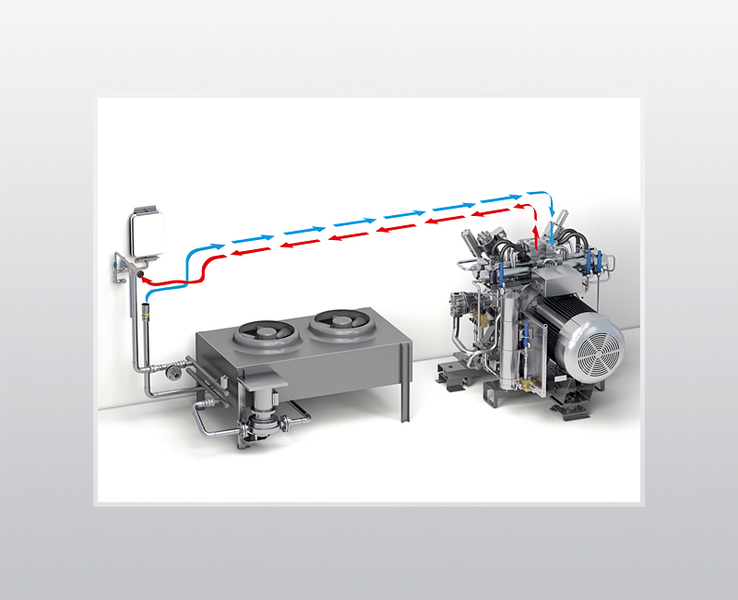

The set consists of an air-to-water heat exchanger which makes it possible to operate water-cooled compressor units independently of a water supply.

Scope of delivery, basic version
Scope of delivery, basic version

Scope of delivery, basic version
Complete compressor unit ready for operation. Read more

GIB 23 high-pressure booster, water-cooled, 90 – 365 bar 4 – 50 Hz
Type
designation
Effective
free air delivery ¹
Intake
pressure
Shut-down pressure
min. | max. ²
No. of
compr. stages
Speed
approx.
Motor
output
Power
consumption ¹
Net weight approx.
  l/min m³/h cfm barg bar bar   rpm kW kW kg lbs
GIB 23.10-45 3 1700 102 60 2 90 200 4 1485 45 24 1090 2400
2250 135 794 3 150 300 34
2800 168 989 4 200 350 41
3100 186 1095 4.5 200 350 44
GIB 23.12-45 1950 117 689 4.5 90 200 4 1485 45 24 1090 2400
2500 150 883 6 150 300 32
3200 192 113 8 200 350 40
3500 210 1236 9 200 350 42
GIB 23.13-45 3 2350 141 83 8 150 200 4 1485 45 24 1090 2400
2900 174 1024 10 150 300 34
3400 204 1201 12 200 350 37
3900 234 1377 14 200 350 41
GIB 23 high-pressure booster, water-cooled, 90 – 365 bar 4 – 60 Hz
Type
designation
Effective
free air delivery ¹
Intake
pressure
Shut-down pressure
min. | max. ²
No. of
compr. stages
Speed
approx.
Motor
output
Power
consumption ¹
Net weight approx.
  l/min m³/h cfm barg bar bar   rpm kW kW kg lbs
Booster series GIB 23, 90 to 365 bar 4
GIB 23.10-45 3 1350 81 477 2 90 200 4 1170 45 21 1090 2400
1800 108 636 3 150 300 29
2200 132 777 4 200 350 36
2450 147 865 4.5 200 350 38
GIB 23.12-45 1700 102 60 4.5 90 200 4 1170 45 22 1090 2400
2100 126 742 6 150 300 30
2700 162 953 7 200 350 37
3300 198 1165 10 200 350 43
GIB 23.13-37 3 2100 126 742 8 150 200 4 1170 37 20 1050 2315
2600 156 918 10 150 300 27
3000 180 1059 12 200 350 32
3500 210 1236 14 200 350 35
GIB 23 high-pressure booster, water-cooled, 90 – 365 bar 4 – 60 Hz
Type
designation
Effective
free air delivery ¹
Intake
pressure
Shut-down pressure
min. | max. ²
No. of
compr. stages
Speed
approx.
Motor
output
Net weight approx.
  l/min m³/h cfm barg bar bar   rpm kW kg lbs
Booster series GIB 23, 90 to 365 bar 4
GIB 23.10-45 3 2000 120 706 2 90 200 4 1770 45 1090 2400
2700 162 953 3 150 300
GIB 23.12-45 2350 141 83 4.5 90 200 4 1770 45 1090 2400
3000 180 1059 6 150 300
3400 204 1201 7 200 350
GIB 23.13-45 3 2800 168 989 8 150 200 4 1770 45 1090 2400
3450 207 1218 10 150 300
3750 225 1324 11 200 350
GIB 26 high-pressure booster, water-cooled, 90 – 365 bar 4
Type
designation
Effective
free air delivery ¹
Intake
pressure
Shut-down pressure
min. | max. ²
No. of
compr. stages
Speed
approx.
Motor
output
Power
consumption ¹
Net weight approx.
  l/min m³/h cfm barg bar bar   rpm kW kW kg lbs
GIB 26.10-132 3 5200 312 184 2 90 200 4 1485 132 74 3350 7400
7000 420 247 3 150 350 106
8700 522 307 4 200 350 124
9600 576 339 4.5 200 350 160 133
GIB 26.12-132 5400 324 191 4.5 90 250 4 1485 132 71 3350 7400
6900 414 244 6 150 350 93
8900 534 314 8 200 350 111
10800 648 381 10 200 350 127
GIB 26.13-132 7800 468 275 10 150 350 4 1485 132 99 3350 7400
9200 552 325 12 150 350 111
10700 642 378 14 200 350 122
11400 684 403 15 250 350 127
GIB 52 high-pressure booster, water-cooled, 90 – 365 bar 4
Type
designation
Effective
free air delivery ¹
Intake
pressure
Shut-down pressure
min. | max. ²
No. of
compr. stages
Speed
approx.
Motor
output
Power
consumption ¹
Net weight approx.
  l/min m³/h cfm barg bar bar   rpm kW kW kg lbs
GIB 52.10-315 3 10500 630 371 2 90 200 4 1485 315 148 4800 10600
14000 840 494 3 150 350 211
17500 1050 618 4 200 350 249
19200 1152 678 4.5 200 350 267
GIB 52.12-250 10800 648 381 4.5 90 250 4 1485 250 143 4330 9550
13800 828 487 6 150 350 187
17700 1062 625 8 200 350 222
21700 1302 766 10 200 350 315 255
GIB 52.13-250 15600 936 551 10 150 350 4 1485 250 199 4330 9550
18500 1110 653 12 150 350 222
21300 1278 752 14 200 350 243
22800 1368 805 15 250 350 315 253
GIB 23 & GIB 26 high-pressure booster, water-cooled, 200 – 520 bar 4
Type
designation
Effective
free air delivery ¹
Intake
pressure
Shut-down pressure
min. | max. ²
No. of
compr. stages
Speed
approx.
Motor
output
Power
consumption ¹
Net weight approx.
  l/min m³/h cfm barg bar bar   rpm kW kW kg lbs
Booster series GIB 23 / GIB 26 / GIB 52, 200 – 420 bar
GIB 23.5-37 2400 144 85 10 200 400 4 1140 37 32 1180 2600
2850 171 101 12 200 400 35
GIB 26.12-160-420 3 8400 504 297 7.5 200 400 4 1485 160 107 3420 7540
10800 648 381 10 200 400 128
GIB 52.12-315-420 3 16400 986 579 7.5 200 400 4 1485 315 214 4800 10600
21700 1302 766 10 200 400 255
Booster series GIB 26 / GIB 52, 420 – 520 bar
GIB 26.5-160-520 3 8400 504 297 7.5 200 500 4 1485 160 113 3420 7540
10800 648 381 10 200 500 136
GIB 52.5-315-520 3 16400 986 579 7.5 200 500 4 1485 315 227 4800 10600
21700 1302 766 10 200 500 272

1 Free air delivery according to ISO 1217, power consumption at maximum final pressure under certain conditions. Other ambient conditions result in different performance data.
2 Shut-down pressure (sensor setting).
3 Suitable for helium under certain conditions. Please check with BAUER. Certain restrictions must be considered with regard to input and final pressure.
4 Max. safety valve pressure setting = max. operating pressure. Reduced switch-off pressure.
