POSEIDON EDITION Nitrox Compressors

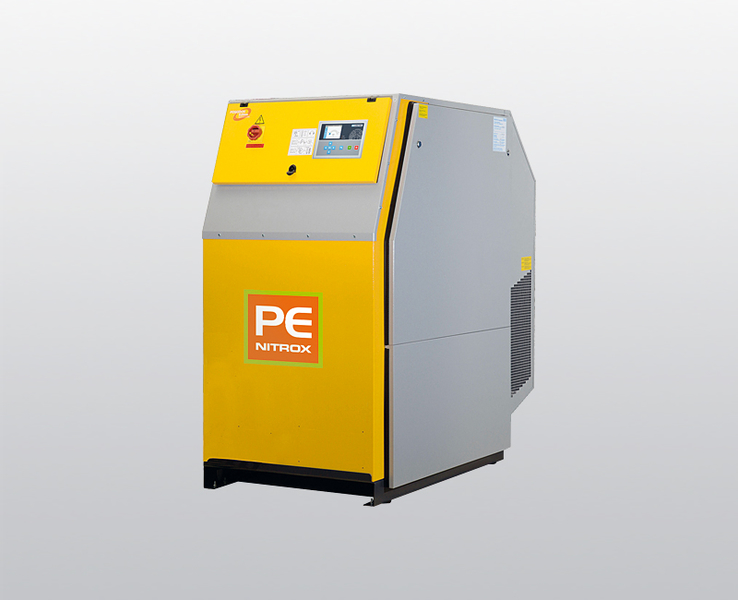

POSEIDON EDITION Nitrox Compressor
POSEIDON EDITION Nitrox Compressor

Type examination for operation with up to 40% oxygen content

Temperature monitoring in the final separator and the cooling air

The OX-optimised compressor units of the POSEIDON EDITION with delivery rates between 320 - 700 l/min are designed for use with NITROX membrane systems and are suitable for compressing NITROX with an oxygen content of up to 40% and a discharge pressure of 300 bar.

The units are controlled by the easy-to-use B-CONTROL MICRO compressor control system.

Professionally tailored to the individual needs and performance requirements in the breathing air sector, the PE-VE units offer practical equipment, the well-known BAUER quality and certified safety for reliable stationary operation.

All the information you need at your fingertips!

IK 12.14 compressor block
IK 12.14 compressor block

IK 12.14 compressor block
The BAUER IK 12.14 compressor block is used for both breathing air and industrial units. Its durability, reliability and high-quality design provide the basis for fault-free operation of the compressor. Read more

IK 15.1-stage compressor block
IK 15.1-stage compressor block

IK 15.1 compressor block
The compressor stages, which are located on sides of the compressor blocks, are the key to optimum smooth running and high efficiency. The free-standing cylinders are easy to access and maintain. Read more

P 41 filter system
P 41 filter system

P 41 Purification system
When used in conjunction with original BAUER filter cartridges, the P 41 filter system with additional oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021:2014¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 1550 m³ of air can be treated.

¹ If the units are maintained and installed correctly as described in the user manual and subject to the BAUER AERO-GUARD being used if CO2 concentration in the intake air exceeds prescribed standard values.

Display B-CONTROL MICRO
Display B-CONTROL MICRO

B-CONTROL MICRO compressor control
The B-CONTROL MICRO is a modern, easy-to-use compressor control with colour display for the control and reliable monitoring of all basic functions. Read more

Temperature monitoring of all compressor stages as well as of the final separator
Temperature monitoring of all compressor stages as well as of the final separator

Temperature monitoring in the final separator and the cooling air
For your safety, all BAUER B-NITROX compressors are equipped with temperature sensors for monitoring the cooling air and in the final separator. Here, compliance with the specified operating temperature is reliably monitored.

B-DRAIN automatic condensate drain
B-DRAIN automatic condensate drain

B-DRAIN automatic condensate drain
The automatic condensate drain automatically removes the condensate that forms during compression (water/oil mixture) from the intermediate separators and the final separator and collects it in a condensate vessel. Read more

Motor rocker
Motor rocker

Motor rocker
The integration of a motor rocker means that the tension of the V-belt no longer has to be adjusted.

Connection for external intake system
Connection for external intake system

Connection for external intake system
When filling breathing air cylinders, the quality of the compressed air is dependent on the quality of the ambient air intake. Clean fresh air must be taken in from an external source in particular if there is a risk of exhaust gases (CO) and exhaust air from other units. A connection for an external suction line has been provided for this purpose.

Super-Silent version
Super-Silent version

Super Silent version
Super Silent housing reduces the noise level of the compressor unit and makes the unit compatible for operation in working environments where noise is a key concern. For units in the POSEIDON EDITION series, Super Silent sound insulation can be retrofitted on request.

P 61 filter system
P 61 filter system

P 61 Purification system
When used in conjunction with original BAUER filter cartridges, the P 61 purification system with additional oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021:2014¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 2400 m³ of air can be treated.

¹ If the units are maintained and installed correctly as described in the user manual and subject to the BAUER AERO-GUARD being used if CO2 concentration in the intake air exceeds prescribed standard values.

B-APP
B-APP

B-APP
The B-APP allows remote access to BAUER compressors with the B-CONTROL MICRO control via the B-CLOUD. It offers useful features such as calculation tools, an integrated worldwide dealer search, news and videos about compressed air and BAUER compressors. Available in the App Store (iOS) and on Google Play (Android). Read more

Integrated gas measurement system B-DETECTION PLUS i
Integrated gas measurement system B-DETECTION PLUS i

Integrated gas measurement system B-DETECTION PLUS i
As an option, the B-DETECTION PLUS i gas measurement system can be integrated into the compressor. This permits the monitoring of all gases required by DIN EN 12021:2014. Thanks to the option for discharge to the outside in the event of short-term contamination and the shut-down of the compressor in the event of extended overruns of the limit values, observance of DIN EN 12021:2014 can be ensured at all times1.

1 Measurement of humidity and total oil value (VOC) as option. Total oil measurement based only on volatile organic compounds (VOCs). Sensor calibration based on isobutene.

B-SECURUS filter monitoring
B-SECURUS filter monitoring

B-SECURUS filter monitoring
The B-SECURUS system monitors the saturation of the filter cartridge(s) by measuring the moisture in the molecular sieve. Read more

Monitoring the intermediate pressures
Monitoring the intermediate pressures

Monitoring the intermediate pressures
This monitoring system is recommended for continuous operation and fully automated operation, as well as for compressor units that do not receive regular attention from specialist personnel. Monitoring tracks the minimum value of stage 1 (intermediate pressure only) and the maximum value of all compressor stages. The compressor unit shuts off if the values monitored fall below or exceed the permissible limit values. The actual value is displayed by the B-CONTROL II compressor control unit.

Filling device 4 × 200 bar
Filling device 4 × 200 bar

Filling device 4 × 200 bar
The filling device consists of four flexible UNIMAM high-pressure filling hoses and one filling valve each for 200 bar. The integrated final pressure gauge makes it easy to read off the final pressure.

Exhaust shaft
Exhaust shaft

Exhaust shaft
Two types of exhaust shaft are available for the installation of compressors in containers, housings or service rooms. Read more

Exhaust shaft with ventilation damper control
Exhaust shaft with ventilation damper control

Exhaust shaft with ventilation damper control
The exhaust shaft with ventilation damper control provides the means via which the exhaust air is discharged into the surrounding room or outdoors under controlled conditions and dependent on temperature. A temperature sensor measures the temperature in the room and controls the position of the ventilation dampers for optimised operation (only possible in conjunction with a Super-Silent housing).

Other voltages/frequencies
Other voltages/frequencies

Other voltages/frequencies
All electric motors are available with other voltages and frequencies on request.

AERO-GUARD
AERO-GUARD

AERO-GUARD
Using the AERO-GUARD reduces the CO2 content of the breathing air to approximately one-third of the intake value. The constantly increasing levels of CO2 concentration in the air resulting from unfavourable environmental influences are making it more and more difficult for the operators of filling stations to be sure of achieving compliance with legally binding maximum limits for CO2. With AERO-GUARD the operator is always on the safe side! Read more

External BAUER filling panels
External BAUER filling panels

External BAUER filling panels
Depending on requirements, filling panels are supplied with filling hoses or lever filling valves with 4, 6 or 10 filling valves. A stainless steel design can be provided as an option.

60 l condensate collection system
60 l condensate collection system

60 l condensate collection system
This convenient system provides a central collection point for the condensate (oil and water mixture) produced during the compression process inside the compressor. The condensate tank features an integrated float switch which can be relied upon to monitor the level of condensate in the tank and provides protection against overfilling. A combined silencer and filter unit prevents pollution caused by noise or odour.

Scope of delivery, basic version
Scope of delivery, basic version

Scope of delivery, basic version
Complete compressor unit ready for operation. Read more

POSEIDON EDITION Nitrox high pressure compressor, up to 300 bar, 320 – 700 l/min
Type
designation
Charging rate ¹ Number of
compressor stages
Speed
approx.
Motor
output
Dimensions
L × W × H ²
  l/min m³/h cfm   rpm kW cm
PE 320-VE-OX 320 19 11.5 4 1450 7.5 114 × 83 × 152
PE 550-VE-OX 550 33 20 4 1230 11
PE 700-VE-OX 700 42 25 4 1400 15

¹ Measured with cylinder filling from 0 to 200 bar (0 to 3000 psi), ±5%
² Dimensions for Super-Silent version: 148 × 83 × 152 cm.
