The GIB series: Air-cooled high-pressure booster for the Gas Injection Technology

BAUER VERTICUS Super-Silent (sound-insulated) high-pressure booster
BAUER VERTICUS Super-Silent (sound-insulated) high-pressure booster
BAUER VERTICUS Super-Silent (sound-insulated) high-pressure booster
BAUER VERTICUS Super-Silent (sound-insulated) high-pressure booster
BAUER MINI-VERTICUS Super-Silent (sound-insulated) high-pressure booster
BAUER MINI-VERTICUS Super-Silent (sound-insulated) high-pressure booster
BAUER MINI-VERTICUS Super-Silent (sound-insulated) high-pressure booster with B-KOOL
BAUER MINI-VERTICUS Super-Silent (sound-insulated) high-pressure booster with B-KOOL
Compressor control B-CONTROL MICRO
Compressor control B-CONTROL MICRO

Now significantly quieter: thanks to the new anti-vibration frame and noise-optimised Super Silent housing

Compact dimensions: For installation wherever space is at a premium

Ergonomic design: optimum accessibility and operation

B-DRAIN: The new automatic condensate drain is quieter and saves energy

Very easy to maintain: The tension of the V-belt does not have to be adjusted

The air-cooled high-pressure boosters in the GIB-series by BAUER KOMPRESSOREN are the ideal system solution for the compression of air and nitrogen where intake pressure is available.

The new generation of stationary compressors from the VERTICUS series once again demonstrates BAUER’s leading-edge technological status.

The new MINI-VERTICUS and VERTICUS combine the legendary BAUER compressor blocks with improved components and ultra-modern design! During the redesign, the focus was on ergonomics, making operation as easy as possible, reducing noise and boosting efficiency.

All control elements that are important for everyday operation are ergonomically arranged and easily accessible from the front.

A new condensate vessel integrated into the housing with 40 % more capacity. The compressor control monitors the fill level and informs the operator in good time if the condensate needs to be emptied.

The advanced B-CONTROL MICRO is more powerful and ready to communicate with the B-APP for remotely controlling and monitoring the compressor.

All the information you need at your fingertips!

Display B-CONTROL MICRO
Display B-CONTROL MICRO

B-CONTROL MICRO compressor control
The B-CONTROL MICRO is a modern, easy-to-use compressor control with colour display for the control and reliable monitoring of all basic functions. Read more

MINI-VERTICUS and VERTICUS – the concept
MINI-VERTICUS and VERTICUS – the concept

MINI-VERTICUS and VERTICUS – the concept
Powerful compressor systems featuring compact design, small footprint and outstanding ease and convenience of use. Read more

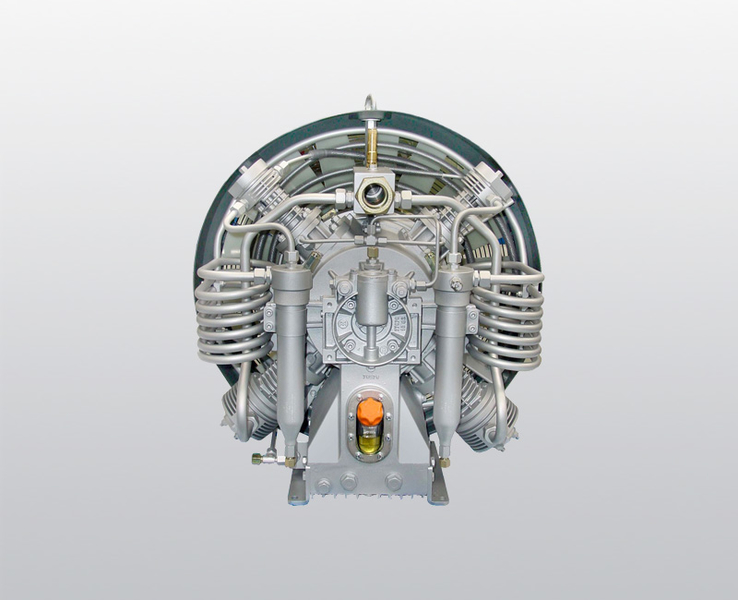

BK 15.3 compressor block
BK 15.3 compressor block

Compressor blocks
With their outstanding surface hardness, plasma-nitrided and plateau-honed cylinders are able to achieve extremely long service lives combined with low energy consumption and reliable oil lubrication of cylinder surfaces. Read more

B-DRAIN automatic condensate drain
B-DRAIN automatic condensate drain

B-DRAIN automatic condensate drain
The automatic condensate drain automatically removes the condensate that forms during compression (water/oil mixture) from the intermediate separators and the final separator and collects it in a condensate vessel. Read more

AIR COOLING
AIR COOLING

AIR COOLING
Compressors in the MINI-VERTICUS and VERTICUS series are cooled directly using ambient air. The heat they generate is discharged efficiently and effectively. Read more

Drive
Drive

Drive
A low-maintenance, self-tensioning V-belt drive is used for power transmission in the MINI-VERTICUS & VERTICUS series. The integration of a motor rocker means that the tension of the V-belt does not need to be adjusted. The compressor units are fitted ex works with energy-saving three-phase motors which meet the requirements of energy efficiency class IE3.

Super-Silent cladding
Super-Silent cladding

Super Silent version
Super Silent housing reduces the noise level of the compressor unit and enables an exhaust shaft to be used. For units in the MINI-VERTICUS & VERTICUS series, Super-Silent sound insulation can be retrofitted on request.

B-CONTROL II compressor control
B-CONTROL II compressor control

B-CONTROL II
The BAUER B-CONTROL II compressor control is the extended version of the B-CONTROL MICRO basic compressor control. Read more

Temperature Sensor
Temperature Sensor

Monitoring the intermediate pressures and intermediate stage temperatures
This monitoring system is recommended for continuous operation and fully automated operation, as well as for compressor units that do not receive regular attention from specialist personnel. Monitoring tracks the minimum value of stage 1 (intermediate pressure only) and the maximum value of all compressor stages. The compressor unit shuts off if the values monitored fall below or exceed the permissible limit values. The actual value is displayed by the B-CONTROL compressor control unit.

Oil level monitoring
Oil level monitoring

Oil level monitoring
If the oil level reaches the minimum mark, this is indicated on the control display as a warning message. This option is highly recommended for compressor units in continuous operation.

B-APP
B-APP

B-APP
The B-APP allows remote access to BAUER compressors with the B-CONTROL MICRO control via the B-CLOUD. It offers useful features such as calculation tools, an integrated worldwide dealer search, news and videos about compressed air and BAUER compressors. Available in the App Store (iOS) and on Google Play (Android). Read more

P 61 filter system
P 61 filter system

P 61 Purification system
The units in the MINI-VERTICUS & VERTICUS series can be supplied with the P 61 purification system integrated as an option. Clean air and gas qualities meeting the requirements of ISO 8573-1 (among others) can be achieved.

P 81 filter system
P 81 filter system

P 81 Purification system
The units in the MINI-VERTICUS & VERTICUS series can be supplied with the P 81 purification system integrated as an option. This system doubles the intervals for changing cartridges compared with the P 61 purification system and meets the requirements of more far-reaching treatment standards.

Particulate filter
Particulate filter

Particulate filter
An integrated particulate filter is offered as an option in conjunction with the P61 and P81 purification systems, to remove particulates safely in compliance with industrial requirements under ISO 8573 class 2.

B-SECURUS filter monitoring
B-SECURUS filter monitoring

B-SECURUS filter monitoring
The B-SECURUS system monitors the saturation of the filter cartridge(s) by measuring the moisture in the molecular sieve. Read more

B-KOOL refrigeration dryer
B-KOOL refrigeration dryer

B-KOOL refrigeration dryer
The normal service life (capacity) of a filter cartridge can be extended many times over by additional cooling of the compressed air with the B-KOOL refrigeration dryer. Read more

Intermediate pressure gauges
Intermediate pressure gauges

Intermediate pressure gauges
Analogue pressure gauges mounted on the compressor unit in a suitable location. They make it easy to check, diagnose and maintain the unit.

Condensate vessel, 60 litres
Condensate vessel, 60 litres

60-litre condensate vessel
The generous 60 l condensate collection system provides a central collection point for the condensate produced during the compression process inside the compressor. Read more

Extended base frame
Extended base frame

Base frame
The compressor and up to 2 storage bottles each with a geometric capacity of 50 or 80 litres are installed on the extended base frame, making this a turnkey system.

Exhaust shaft
Exhaust shaft

Exhaust shaft
Two types of exhaust shaft are available for the installation of compressors in containers, housings or service rooms. Read more

Scope of delivery, basic version
Scope of delivery, basic version

Scope of delivery, basic version
Complete compressor unit ready for operation. Read more

GIB high-pressure booster: MINI-VERTICUS, 200 – 475 l/min, 90 – 365 bar
Type
designation
Effective
free air delivery ¹
Intake
pressure
Operating pressure ² No. of
compr. stages
Speed
approx.
Motor
output
Power
consumption ¹
Net weight approx.
  l/min m³/h cfm barg bar psig   rpm kW kW kg lbs
GIB 10.2-7.5-MV
GIB 10.2-7.5-MV 290 17.4 10.2 2 365 5300 3 1350 7.5 5.3 351 774
385 23.1 13.6 3 6.3
GIB 12.2-5.5-MV
GIB 12.2-5.5-MV 200 12 7 5 365 5300 2 1230 5.5 3.3 333 734
295 17.7 10.4 7 4.0
390 23.4 13.8 9 4.6
475 28.5 17 11 5.1

GIB high-pressure booster: VERTICUS, 430 – 950 l/min, 90 – 365 bar

Type
designation
Effective
free air delivery ¹
Intake
pressure
Operating pressure ² No. of
compr. stages
Speed
approx.
Motor
output
Power
consumption ¹
Net weight approx.
  l/min m³/h cfm barg bar psig   rpm kW kW kg lbs
GIB 15.3-11-V
GIB 15.3-11-V 510 30.6 18 7 365 5300 2 1140 11 6.6 404 891
590 35.4 20.8 8 7.1
670 40.2 23.7 9 7.7
750 45 26.5 10 8.2
GIB 15.3-11-V
(high flow)
660 39.6 23.3 7 365 5300 2 1440 15 10 413 911
760 45.6 26.8 8 10.8
850 51 30 9 11.5
950 57 33.5 10 12.2
GIB 15.41-15-V
GIB 15.41-15-V 430 25.8 15.2 2 365 5300 3 1350 15 9.0 416 917
590 35.4 20.8 3 10.6
750 45 26.5 4 12.1
GIB 15.41-15-V
(high flow)
490 29.4 17.3 2 365 5300 3 1530 15 10.5 416 917
660 39.6 23.3 3 12.5
830 49.8 29.3 4 14.5

¹ Free air delivery according to ISO 1217, power consumption at maximum final pressure under certain conditions. Other ambient conditions result in different performance data. Values valid for 50 Hz.
² Max. operating pressure = max. safety valve pressure setting; reduced switch-off pressure.
