B-FILL – the new external BAUER filling panel
The BAUER B-FILL external filling panel – now with a stylish new design – allows you to quickly fill breathing air cylinders. The B-FILL is now modularly expandable and can even be retrofitted. Each module is equipped with two filling connectors, as desired either with hoses or direct connections, both of which can fill at up to 200, 300 or 500 bar.

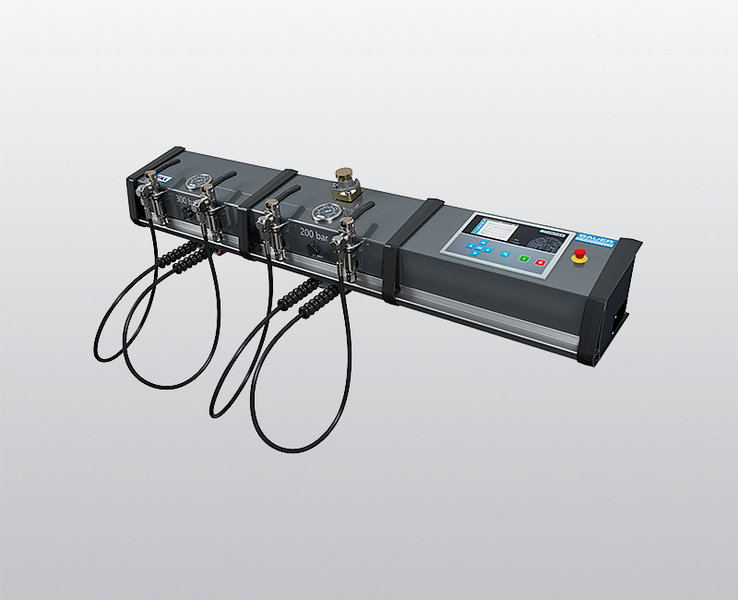

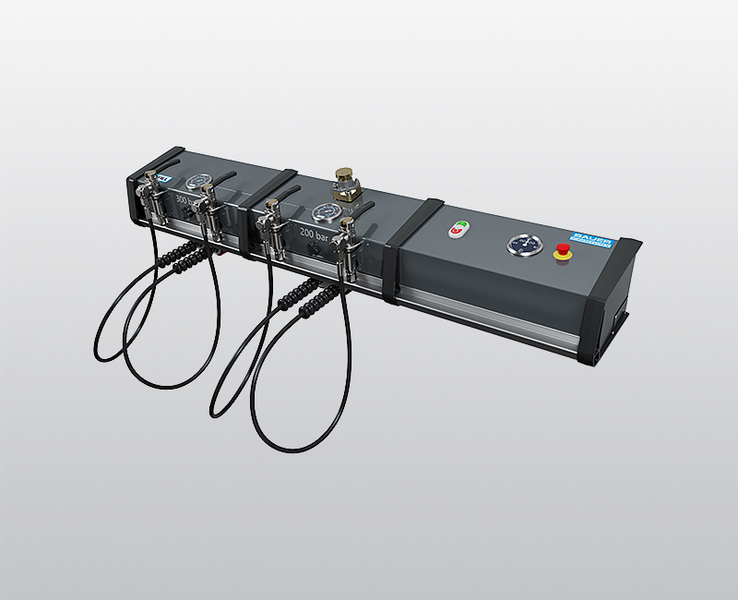

For optional control and monitoring of the system, a B-CONTROL MICRO can be installed in an additional B-FILL module. Units without a B-CONTROL can be fitted with a simple hardwired control with On and Off switching and an Emergency Stop button. Up to four (4) B-FILL modules can be combined, three for filling and one with a control system.
The B-FILL is designed to function as a separate filling panel for mounting on the wall. Equipped with a remote control, it is ideal for installation in a separate room. The filling hoses surpass the strict safety requirements applicable to the filling of breathing air cylinders and are mounted on ergonomic hook-on brackets. Rebound protection in the filling valves provides effective protection for persons and ensures the highest level of operational safety even if the filling valve is opened unintentionally.
All the information you need at your fingertips!
Number of modules | Dimensions (L × W × H) mm |
---|---|
1 module with hose coupling | 440 × 240 × 180 |
1 module with direct filling valve | 440 × 288 × 171 |
2 modules with hose coupling | 840 × 240 × 180 |
2 modules with direct filling valve | 840 × 288 × 171 |
3 modules with hose coupling | 1240 × 240 × 180 |
3 modules with direct filling valve | 1240 × 288 × 171 |
Filling panel versions:
- With hose coupling

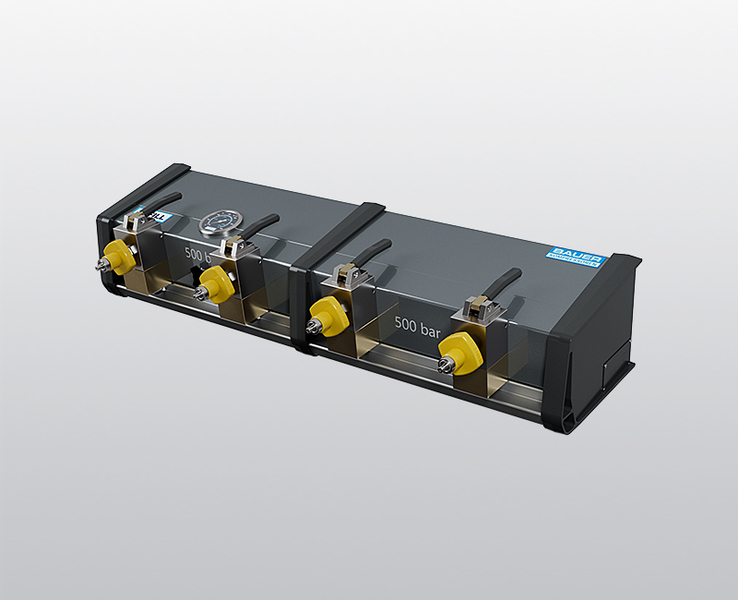

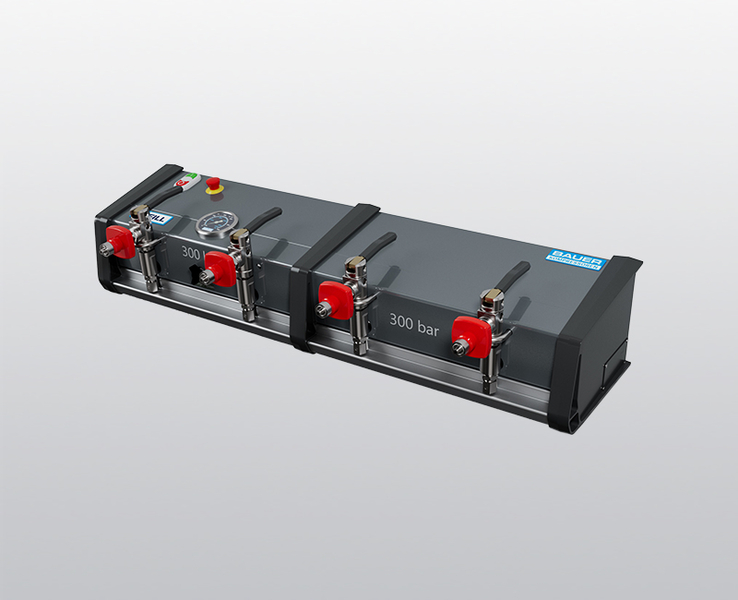

- With direct filling valve (direct cylinder coupling)
- For a pressure range of PN 200, PN 300 or PN 500 bar
- With 2 filling valves per module
- With a choice of B-CONTROL MICRO or hardwired control module
- With rebound protection in the filling valve
- With high-pressure testing of all components
- With flushing valve with muffler
